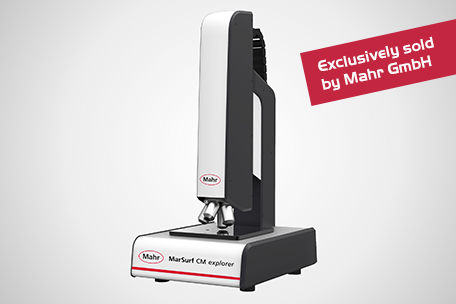

MarSurf CM explorer

Flexible all-round measurement solution in new edition

MarSurf CM explorer is a compact package for precision 3D measurement and analysis of surfaces. It is suitable for metrology and test laboratories as well as for use in production environments thanks to its robustness. Measurements with the confocal microscope MarSurf CM explorer are fast and uncomplicated with just a few function steps to follow.

The flexible and user-friendly optical measuring system is used successfully in numerous companies and industries for roughness measurements according to ISO, measurement of topography, micro geometry, layer thickness or other parameters. The µsurf explorer is successfully deployed in the automotive indutry, medical technology, microelectronics, the paper and printing industry, steel industry and optics production.

The new generation

The new generation of MarSurf CM explorer combines proven qualities with the latest innovations of the NanoFocus technology. The measuring system is fully equipped with HDR function, automatic lens detection, and collision protection in all spatial directions.

HDR function

The HDR function (High Dynamic Range) ensures an optimized visual representation of the measured surface. Height information can be captured in 65536 grayscales (16 bit). This means that over- and underexposure is minimized and finest contrast gradation can be detected. Surface structures with steep flanks and complex geometries can be measured with highest precision and free of artifacts.

Color HDR camera

By using an optional color camera further information about the color image of a surface can be acquired. The color information may be overlaid with the 3D topography and provides a realistic three-dimensional impression of the surface.

Benefits at a glance

  • Ultracompact design
  • HDR function (16 Bit)
  • Collision detection
  • Efficient complete system
  • User-friendly concept
Mahr GmbH
Kai Meine
Phone:  +49 208 62000-706
Fax:  +49 208 62000-99


www.mahr.de







MarSurf CM explorer is exclusively sold by NanoFocus partner Mahr GmbH.
